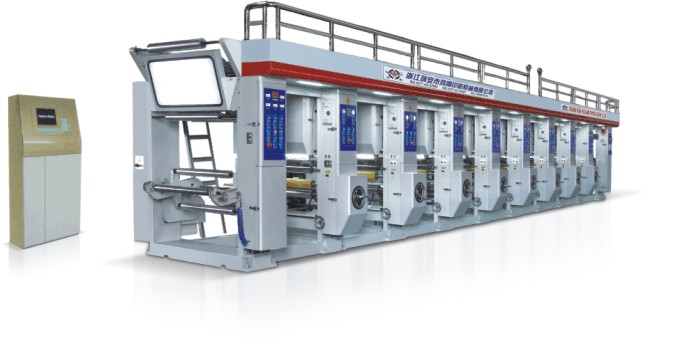

1, use: the machine is suitable for BOPP, CPP, PET, PCVD and the same nature of the combination of film, paper, etc..
Machine printing speed of 80 m / min, mechanical speed of 100 m / min.
2, the main transmission device: the main transmission control motor Shenzhen Huichuan inverter, drive each plate. Features: save electricity.
3 no axis installed version of the body: the installed version of the use of the cylinder, pulling the core axis to carry out the installation version, the horizontal adjustment screw movement.
Features: reduce the time to change, to ensure that the version of the heart, improve product quality.
4, ink scraper mechanism: blade can be adjusted up and down and angle, blade pressure using a single cylinder, horizontal movement using motor rotation cam. Features: extended version of the service life.
5, nano imprint lithography lifter: nano imprint lithography with double cylinder pressure and electromagnetic valve self-locking and positioning, the leakage of cylinder and cylinder shut down off protective.
Features: ensure that the pressure on average, to ensure that the color difference.
6, colour manipulaltor: the use of computer control of synchronous motor by adjusting the drive screw, for automatic registration.
Features: lubrication, high precision adjustment.
7, collection, discharging mechanism: Based on double + station close, put rack, discharge the automatic magnetic powder tension control, the traction tension using domestic automatic tension control, receiving the double torque motor control, automatic tension a axis to the b axis transformation. Features: reduce waste, reduce costs.
8, drying, cooling mechanism: oven with centrifugal fan blowing and suction, electrothermal quartz tube distribution at the mouth of the hair of each oven for heating, temperature is controlled by the intelligent temperature control instrument, each cooling oven, export the installation of a centrifugal fan cooling to ensure film cooling. Features: save electricity.
Main technical parameters:
Type HXAY-1100D HXAY-800D
Printing width 1100mm 800mm
Printing speed 110mm Max 110mm Max
The plate diameter 100-350mm diameter 100-350mm
Roll diameter 600mm diameter 600mm
Printing plate horizontal adjustment 30mm 30mm
Plate longitudinal adjustment of 100 degrees (degree) 100 degrees (degree)
Overprinter precision + 0.1mm + 0.1mm
Machine total power 90kw 75KW
Machine weight 14000kg 13000kg
Machine dimension 10500x2800x2400mm 10500x2500x2400mm |
